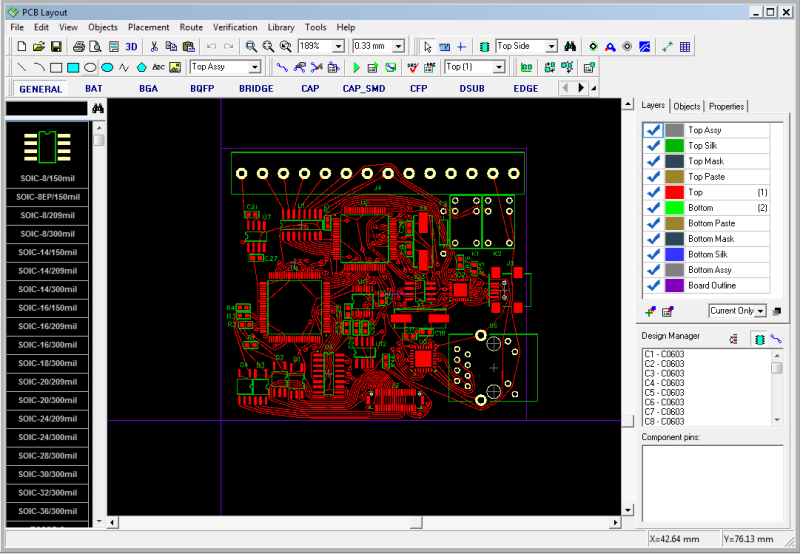

PCB Creator - Version 2.0 Easily design 2 to 4 layer printed circuit boards with up to 1000 pins. PCB Creator is based on professional PCB Design software and is very easy to use. You will have your circuit designed and ready for manufacturing in no time. Make your schematic first in the easy to use schematic designer. Choose from a large library of parts and footprints to get exactly what you need. Then convert to PCB to complete the layout with traces, text and more.After converting Schematic to PCB layout, place board outline and arrange components. Then use placement by list for chips/connectors and auto-placement for other components to get acceptable result in a few minutes and start routing.PCB Creator PCB software includes 2 automatic routers (Shape-based and Grid-based). Shape Router is able to route complex layouts with SMD components as well as single-layer boards. Grid Router can also make single-layer boards with jumper wires. With Specctra DSN/SES interface you can use external shape-based or topological autorouter. Intelligent manual routing
