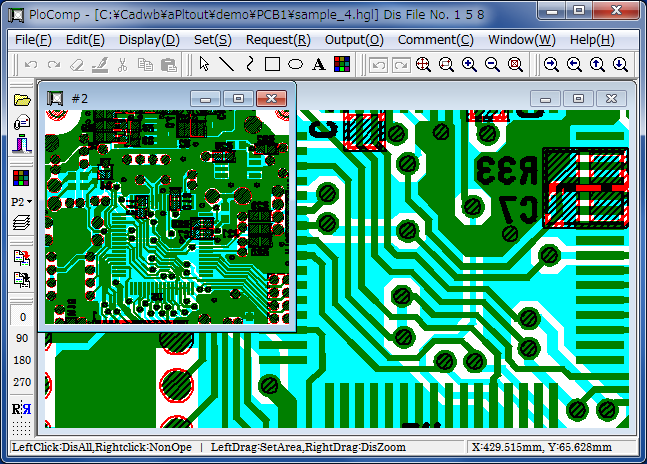

PloComp - Version 12.0 PloComp reads plural HPGL/Vector/Image files and PloComp piles up or arranges drawing, and displays it.(1) Support many file formatsInput: HPGL, HP-GL/2, HP RTL, PDF, DXF, DWG, GERBER, NC-Drill, IGES, SXF, EMF, TIFF, JPEG, Bitmap, PCX, FPX, GIF, PNGOutput: PDF, HPGL, HP-GL/2, HP RTL, EMF, TIFF, DXF, DWG, JPEG, Bitmap, IGES, SXF, PCX, FPX, GIF, PNG, Printer, Plotter(2) High-speed display of vector drawing, and many commands about display(3) Display a maximum of 20 plural drawings in piles, or arrange and display. Displaying ON/OFF of the piled-up drawing is carried out per drawing.(4) Compare two drawings and add cloud mark automatic to change area(5) Color and width change of line, whole drawing black and white / color change, background color change, pen ON/OFF(6) Display mode: Copy / Merge / Xor / Command in data(7) Rotation, mirror, thumbnail displaying(8) Vector font / TrueType font change of character font(9) Measurement function of coordinates, length, area, line width, and angle(10) Connected line search, the total line length measurement(11) Drawing edit of commentFile: New or vector input file of (1) is read (page number links to layer number), edited, and saving enables to output file of (1).Figure: Polyline, Arc, Circle, Horizontal line, Vertical line, Slanting line, Opposite side angle line, Regular polygon, Ellipse, Offset line, Free curve, Cloud shape line, Spline, Surface, Rectangle, Long circle, Text, Bitmap, Macro, Dimension (Horizontal, Vertical, Parallel, Angle, Radius, Diameter)Edit: Setup, Select (individual selecting, rectangular area selecting, polygon area selecting), Move copy, Delete, Divide/Delete/Move/RouteChange polyline section, Delete line in selected area boundary, Trim, Change property, Change vertex R, Chamfer, Connect Line, Rotate copy, Scale Up/Down copy, Macro-izing, Macro breakup, ReDo, UnDo
