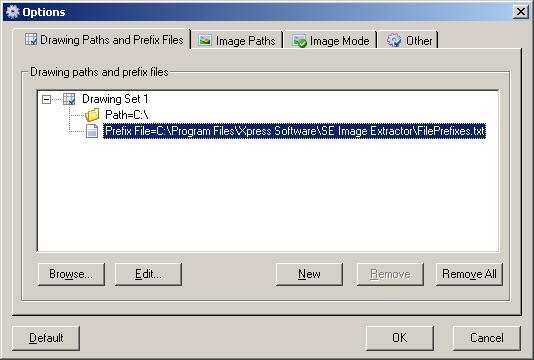

SE Image Extractor - Version 3.15.52 SolidEdge Automation Tool that easily extracts 2D and 3D drawings into different image formats (bmp, jpg, etc.) for easy integration with 3rd party software. Integrate SolidEdge drawings with your catalogs, websites, assembly instructions and other printed materials.SE Image Extractor is used as a batch image export for online and off-line catalogs, assembly instructions and other needs. SE Image Extractor requires a valid license of Solid Edge installed on the same computer. Let's take a look at the options that are available in SE Image Extractor: First, you setup paths to your folders with Solid Edge files. (You can even setup multiple folder sets and custom file filters for each folder). Then, you can setup the default directories to extract images to and whether to save subassembly and part
