Double Pipe Heat Exchanger Design (DHex)

- Version 1.0

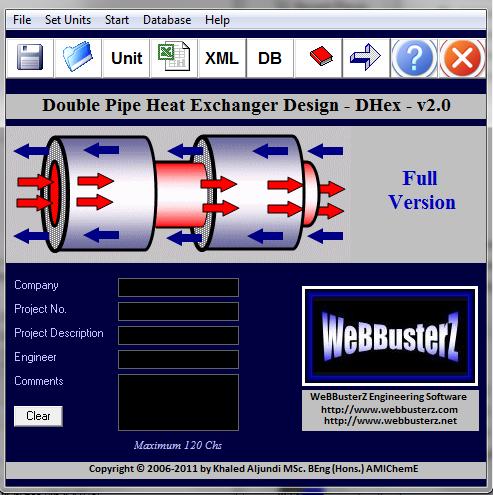

DHex is a software tool that is made to demonstrate the
chemical design calculations of Double pipe (hairpin)
Heat Exchangers.The software will do all the thermal
calculations involved in the design and will generate a
summary of all results, List of main functions:
+Step by step calculation
+Support S.I Units and English (U.S) Units of mesurement.
+User database functions to allow user to add/delete
components and load to hot/cold side (Empty database!).
+Ability to import properties to Hot/Cold sides from
Microsoft Excel.
+Ability to calculate unknown Cold or Hot side
temperatures.
+Perform thermal analysis for bare tube double pipe
(hairpin) heat exchangers.+Perform thermal analysis for
finned tube double pipe (hairpin) heat exchangers.
+Choose from Counter Current or Co-Current Flow
arrangement.
+Choose from Series arrangement or Series-Parallel
arrangement.
+The software will also tell you the location of
Hot/Cold fluids within the heat exchanger (Inner Pipe
or Outer Pipe).
+Select from different correlations to calculate
Cold/Hot side heat transfer coefficient. Also the
ability to adjust Nusselt number if you do have a
different correlation.
+Calculate the Area, Flow area, Length, Log Mean
Temperature Differance, Number of Hairpins,Unknown Flow
rate.
+Calculate the scale resistance (dirt factor),
Equivalent Diameter.
+Calculate Pipe/Annulus side Reynolds, Nusselt numbers
& Prandtl Numbers
+Duty Calculation, Clean and Design Overall heat
transfer coefficient calculations.
+Pipe/Annulus velocities and Mass velocity calculations
+Number of Transfer Units and Thermal Capacity ratio
calculation +Clean and Fouled Fin Efficiency
calculations for finned tube heat exchanger.
+Pressure drop calculations & Entrance and Exit losses.
+Export Results summary to Microsoft Excel
+Save/Load results. Generate/Print a summary of
results. For more information visit
http://www.webbusterz.com or http://www.webbusterz.net
